Cotek AEK3000-LV, 90-264VAC To 12V Up To 60V, (3000W) Switching Power Mode Supply
Cotek AEK3000-LV, 90-264VAC To 12V Up To 60V, (3000W) Switching Power Mode Supply
Regular price
$862.00 USD
Regular price
Sale price
$862.00 USD
Unit price
per
Couldn't load pickup availability
Please Contact Us First, in Regard to Product Availability On the 'Chat With Us' Widget in The Bottom Right Corner. Thank-you for Choosing Schima.
AEK-3000 LV Features
- Universal AC input / Full range
- Programmable output voltage (0%~105%)
- Programmable output current (0%~105%)
- High power density 16.3W / inch3
- Forced current sharing at parallel operation
- Constant current limit
- Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
- Remote setting multiple PSU via RS-232, RS-485 & I2C
- Power OK signal
- Remote ON / OFF, remote sense function
- Protection: OVP, OLP, OTP, Fan failure
- Compatible Accessories: CT Series
- Choose From 12V Up To 60V

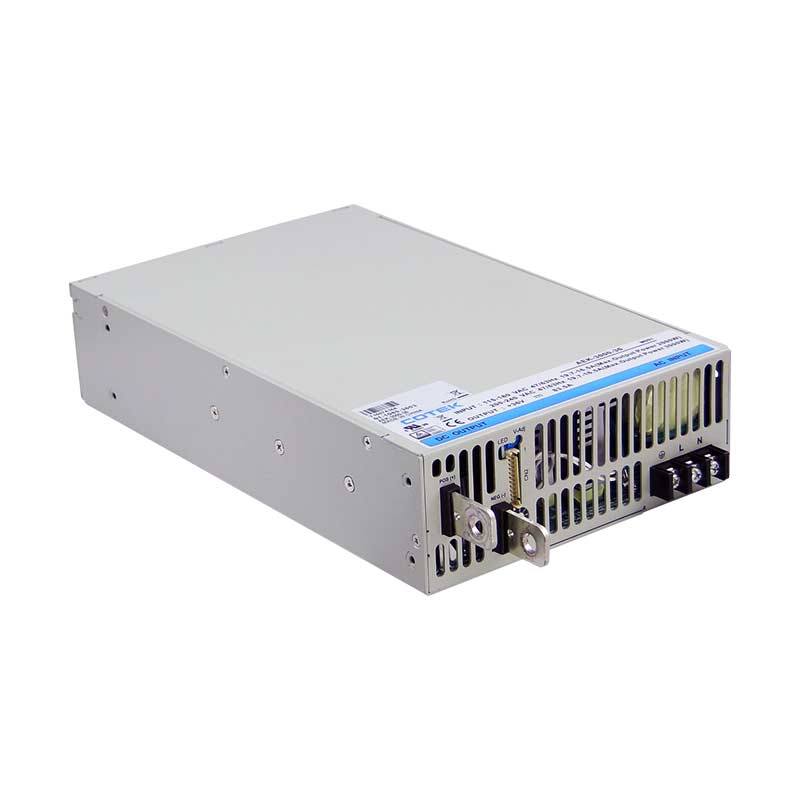

![Cotek AEK3000-LV, 90-264VAC to 12V Up to 60V, (3000W) Switching Mode Power Supply](http://schimapower.com/cdn/shop/files/cotek-aek3000lv-01.jpg?v=1685452577&width=1445)

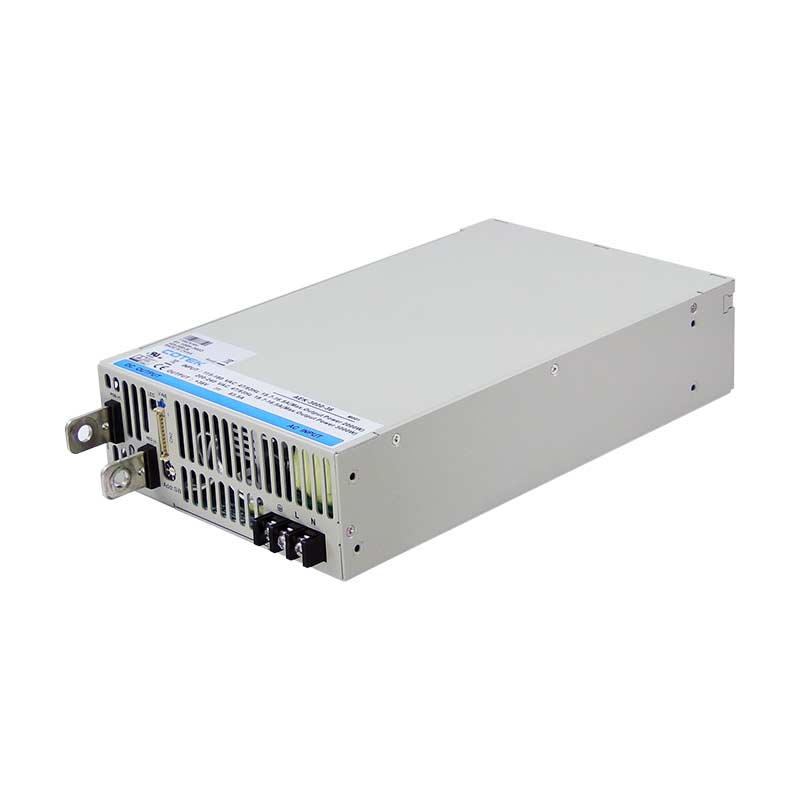

![Angled Front View Cotek AEK3000-LV, 90-264VAC to 12V Up to 60V, (3000W) Switching Mode Power Supply](http://schimapower.com/cdn/shop/files/cotek-aek3000lv-1.jpg?v=1685452577&width=1445)

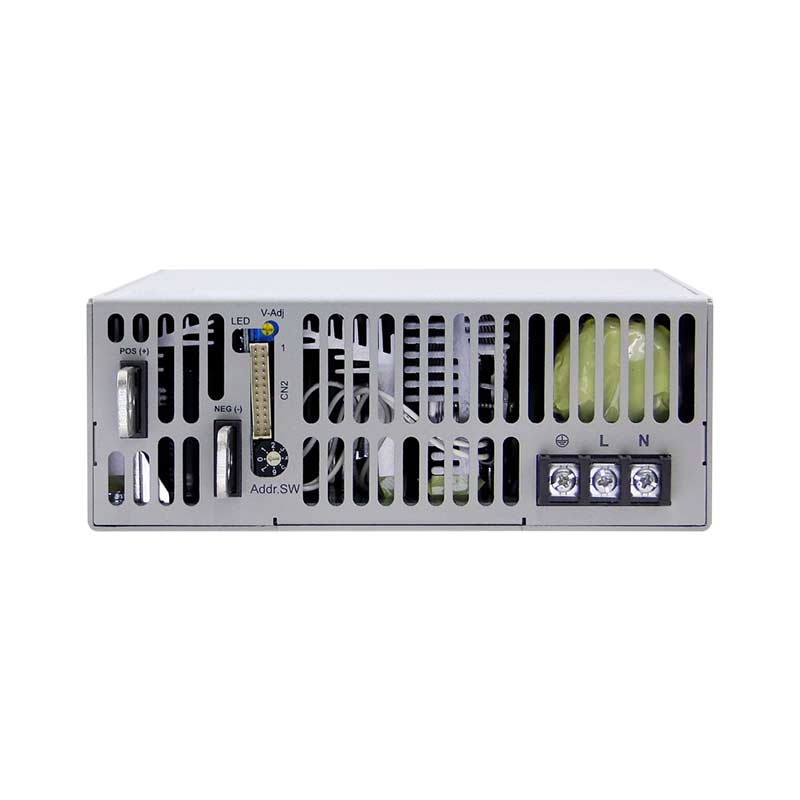

![Front View Cotek AEK3000-LV, 90-264VAC to 12V Up to 60V, (3000W) Switching Mode Power Supply](http://schimapower.com/cdn/shop/files/cotek-aek3000lv-front.jpg?v=1685452577&width=1445)

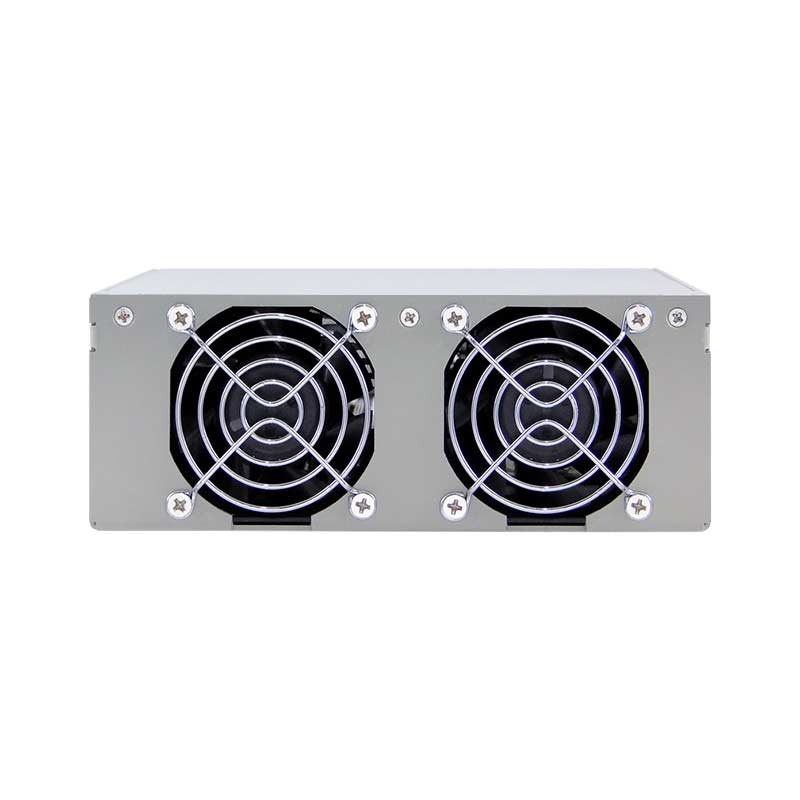

![Rear View Cotek AEK3000-LV, 90-264VAC to 12V Up to 60V, (3000W) Switching Mode Power Supply](http://schimapower.com/cdn/shop/files/cotek-aek3000lv-rear.jpg?v=1685452577&width=1445)

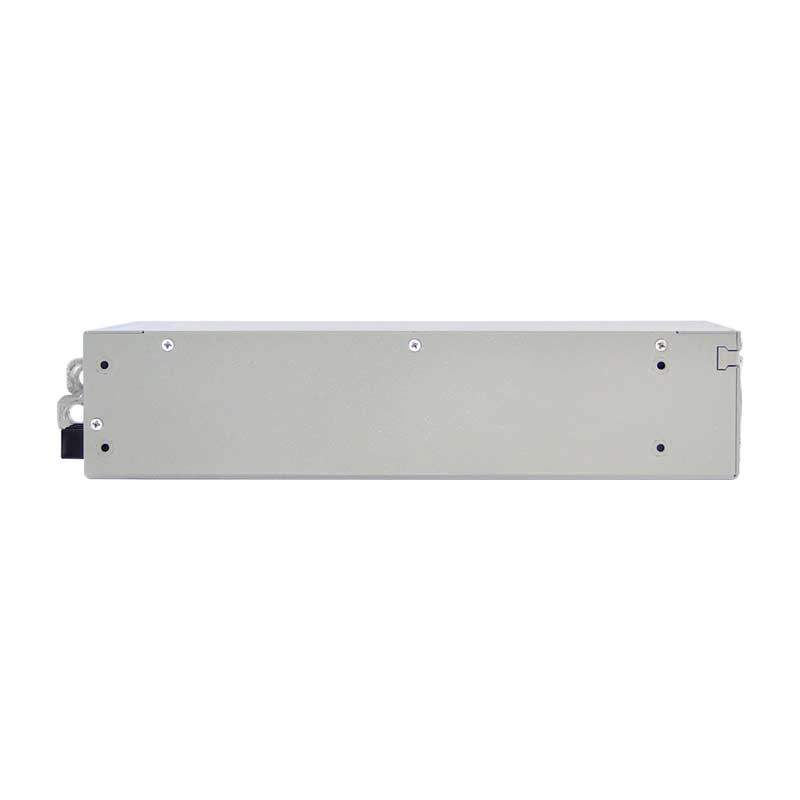

![Side View Cotek AEK3000-LV, 90-264VAC to 12V Up to 60V, (3000W) Switching Mode Power Supply](http://schimapower.com/cdn/shop/files/cotek-aek3000lv-side.jpg?v=1685452577&width=1445)
